Hybrid SDI &
SMPTE ST 2110 Waveform Monitors
Monitor SDI and IP signals up to 8K with customizable software and flexible form factors for Engineering, Production, and Technical QC.

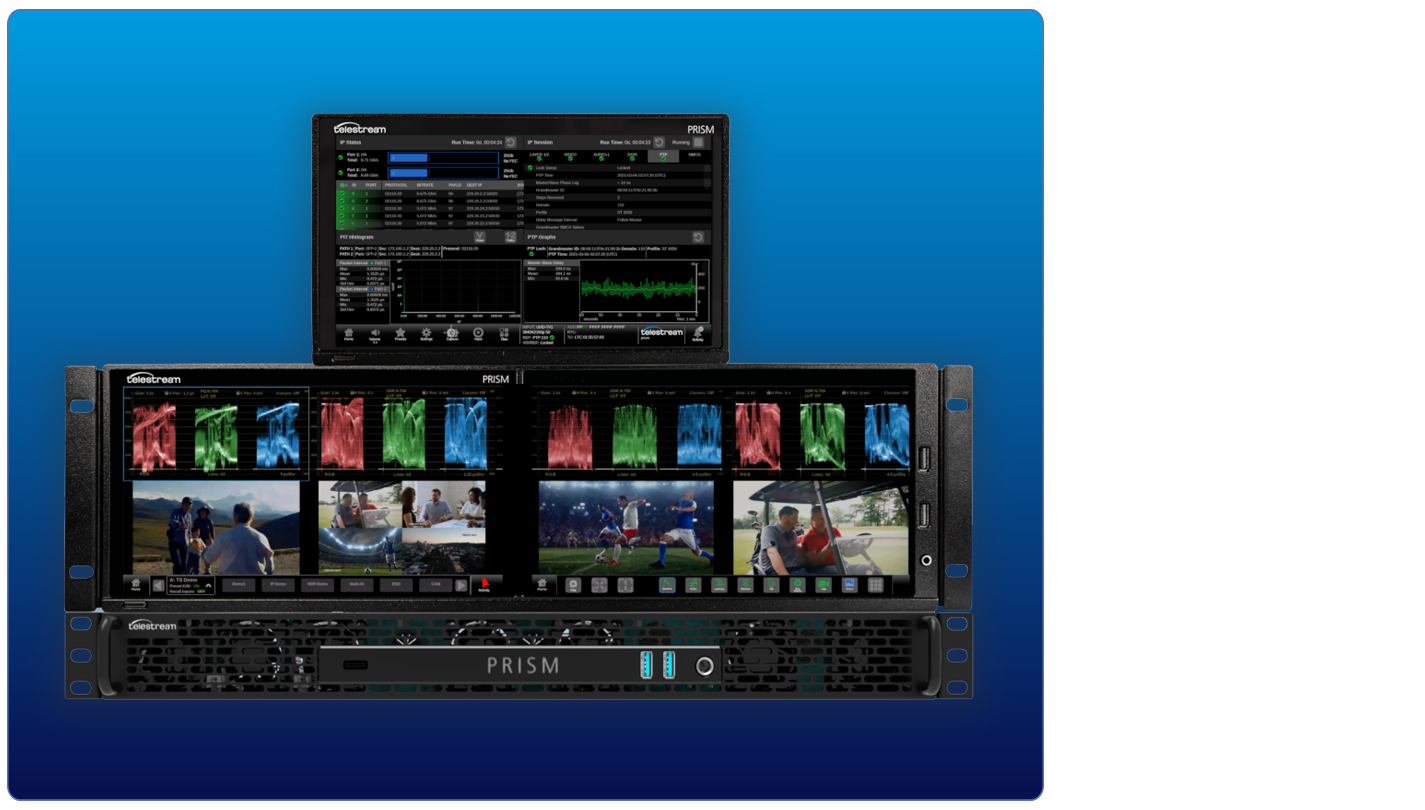

PRISM is designed to support SD to 8K, IP, and SDI signals in one unified solution. Whether you are managing live production, post-production, or technical QC, PRISM offers flexible form factors and customizable tools that simplify signal monitoring and control, ensuring high-quality output every time.

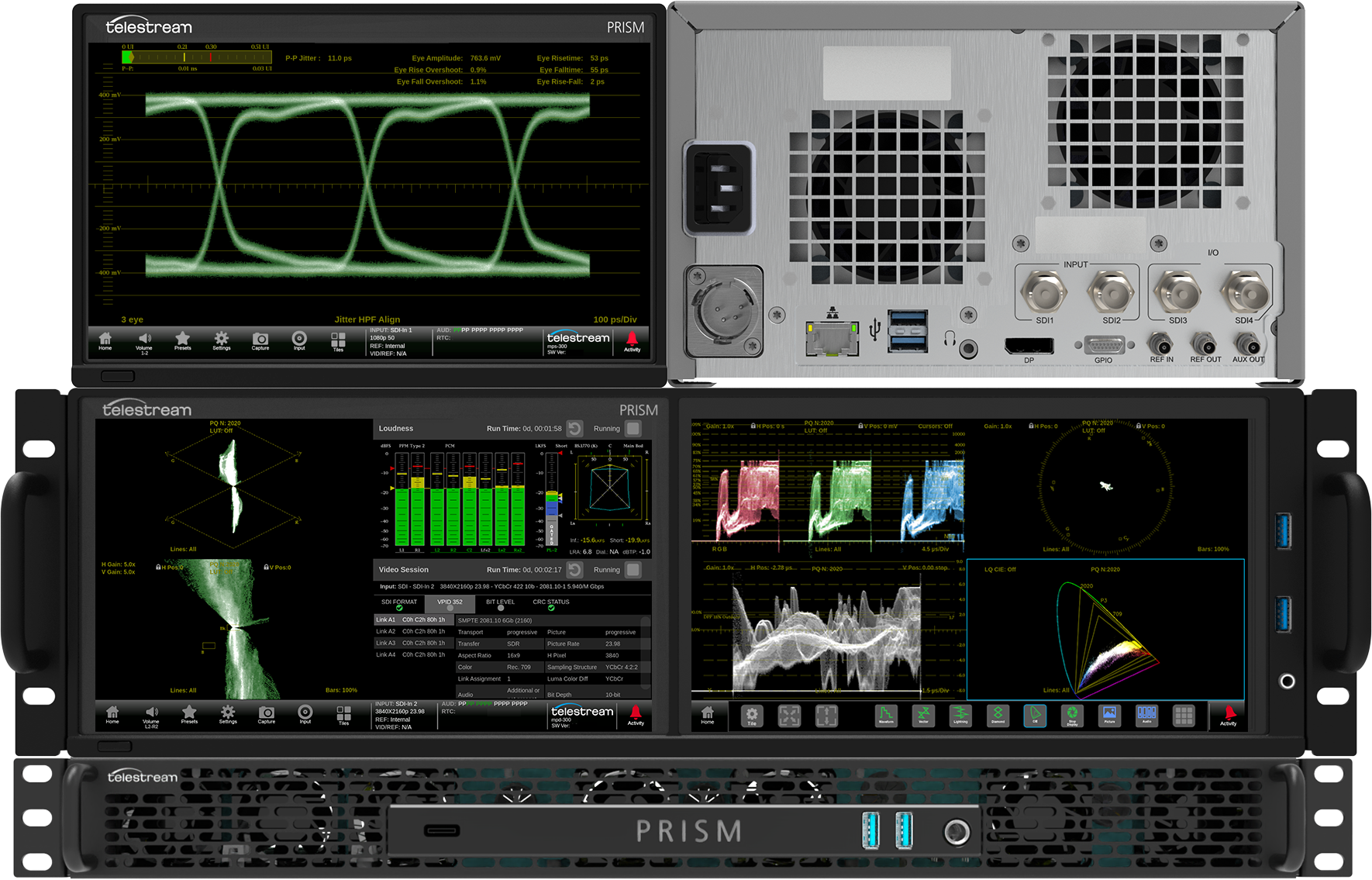

Flexible form factor and connectivity options
PRISM MPS Series
- Integrated Touchscreen
- 3RU height, Half Rack width, 5” depth
- MPS-100 SDI connectivity
- MPS-200 SDI and IP connectivity
- MPS-300 SDI, IP connectivity with SDI Eye/Jitter measurements
PRISM MPD Series
- Dual Integrated Touchscreen
- 3RU height, Full Rack width, 5” depth
- MPD-100 SDI connectivity
- MPD-200 SDI and IP connectivity
- MPD-300 SDI, IP connectivity with SDI Eye/Jitter measurements
PRISM MPP
- Purposely built for quiet workspace
- SDI inputs with loop through
- Two Display Ports are available to drive external PC displays
- 1RU Full Rack width with 11” depth
- MPP-100 SDI connectivity
- MPP-200 SDI / IP connectivity, 8ch Analog Audio output
- MPP-300 SDI / IP connectivity with SDI EYE/Jitter measurement, 8ch Analog Audio output
Advanced signal monitoring capabilities for modern production needs
BENEFITS
Simplifying SDI to IP Transition with PRISM Waveform Monitors

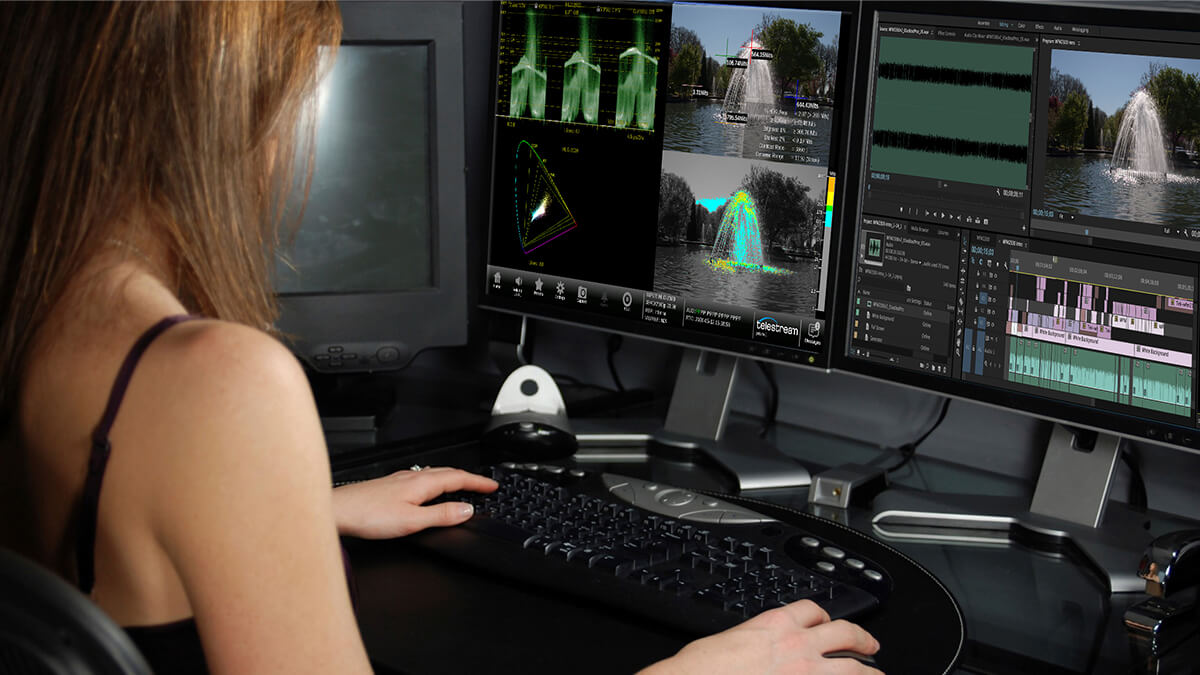

Hybrid Monitoring Capabilities
Transition seamlessly between SDI and IP workflows with PRISM’s hybrid monitoring capabilities, allowing you to monitor both environments from a single platform.
Comprehensive ST 2110 Support
Full compliance with ST 2110 standards, including audio, video, and ancillary data flows, ensures you are equipped to handle IP networks with the same precision as SDI.
Real-Time SDI/IP Comparison
Compare SDI and IP signal performance in real-time using PRISM’s intuitive interface to spot discrepancies and improve efficiency during the transition process.
Seamless Workflow Integration
PRISM’s customizable interface and flexible form factors allow for easy integration into existing SDI workflows while future-proofing for IP environments.
Built-in PTP and SDI Timing
PRISM integrates precision time protocol (PTP) for accurate IP timing while maintaining traditional SDI sync capabilities, ensuring smooth synchronization across both technologies.
Base model equipped with rich set of standard applications
Waveform Display
Provides an array of configurations for various displays of YPbPr, YRGB or RGB with a variety of Gain, Sweep, MAG and Line Select functions and the ability to add cursors for precise measurement within the trace, and integrated 3D LUT for HDR/SDR production with option PROD.
Simplifying SDI to IP Transition with Prism Waveform Monitors
FEATURES
Expand the standard capabilities to unlock a wide range of measurement to address your specific application.

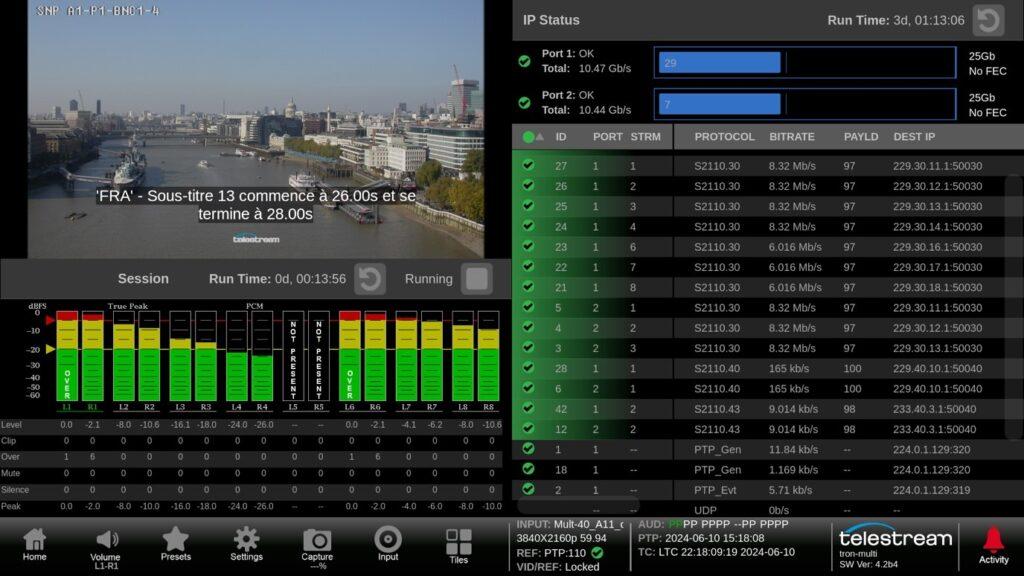

IP Session
IP Session provides a summary of information for the decoded stream. With information on Layer 1 and 2. Along with syntax information on the video, audio and data streams. Summary information is provided on PTP and NMOS applications to assist the user in diagnosing problems. Requires option IP-MEAS to be installed in the instrument.
Seamlessly Migrate to ST 2110 with PRISM, SPG9000, and INSPECT
PRISM, SPG9000, and INSPECT work together to provide unmatched test and measurement capabilities for ST 2110 environments.
Inspect
Comprehensive IP Probe for Live Production, providing real-time IP monitoring and analysis for ST 2110 and ST 2022-6, accessible from any browser, anywhere.
Sync Pulse Generators (SPG)
Ensure resilient synchronization across IP, SDI, and hybrid environments with extensive test signal support up to 4K/UHD editing process.
Seamlessly Migrate to ST 2110 with PRISM, SPG9000, INSPECT and Lightspeed Live
Telestream offers a range of product to help with your transition to ST2110 from the test and measurement instruments using PRISM, SPG9000 and INSPECT to production processing equipment with Lightspeed Liver servers.
Sync Pulse Generators (SPG)
Ensure resilient synchronization across IP, SDI, and hybrid environments with extensive test signal support up to 4K/UHD editing process.
Learn More
INSPECT
Comprehensive IP Probe for Live Production, providing real-time IP monitoring & analysis for ST 2110 & ST 2022-6, accessible from any browser,.
Learn More
Lightspeed Live
The industry’s most comprehensive 2110 solution
for capturing, ingesting and processing live content in
real time - powered by Vantage.
Learn More
PRISM waveform monitor for professionals who need to ensure technical accuracy and quality of video and audio content.
Supporting content owners, producers, and distributors
“Telestream PRISM has been responsive to the marketplace by allowing two full displays from a single scope versus squeezing it all together in a single display, a unique feature which our video shader positions rely on. Not having to buy two full units certainly saves on cost and installation.”
Game Creek Video
